155MM M4A2 Propellant Bag
ADR-155-W200V

155MM

ADOR Defense is a renowned manufacturer of Propellant Bags used in Artillery & Tank Ammunition as well as other military / technical textile components used in various other ammunition systems.

Our Products are designed and manufactured by using high quality fabric, combined with an advanced coating material that leaves no residue in the cannon breech or chamber as well as making it easier to load by strengthening product body.

All of our Propellant Bags are designed in line with relevant military standards for each different type of material used including viscose and cotton. Our fabric design is based on anti-static and water-repellent characteristics tested in accredited laboratories, to enhance shelf life and resistance to rough handling.

As ADOR, we are able to customize each of our Products based on the fabric type, dimensions, coating or caliber difference, with high customer satisfaction from both domestic and international clients.

Our principal offerings include 155mm Propellant Bags (White, Red and Green), 152mm Full Charge & Reduced Charge and 122mm Full Charge & Reduced Charge Propellant Bags with both Viscose and Cotton fabric.

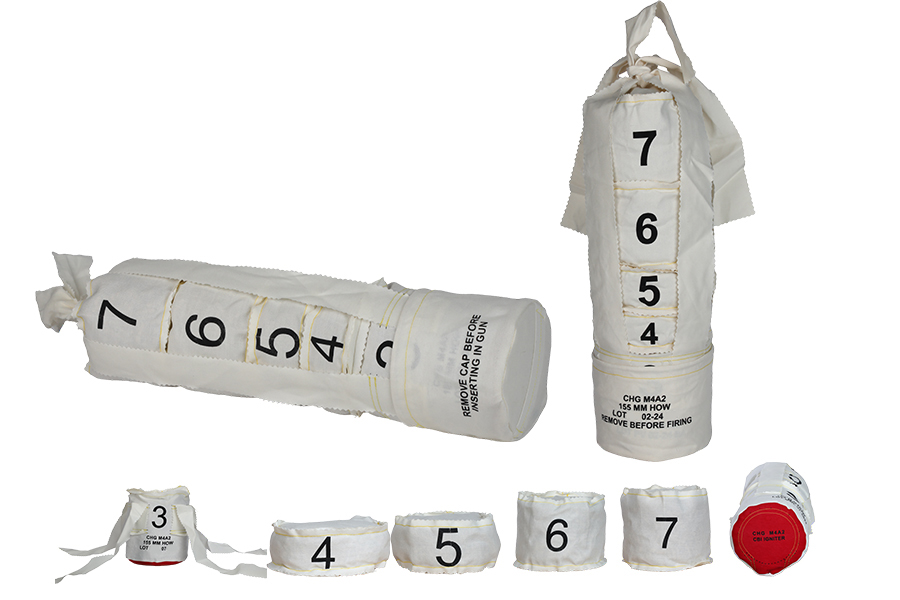

ADR155-W200V 155mm M4A2 Propellant Charge

The M4A2 (white bag) Propellant Charge is a separate loading charge used in 155mm howitzers for firing in Zones 3, 4, 5, 6, and 7.

ADR155-W200V is ADOR’s 155mm M4A2 Propellant Bag based on 200gr / m² Viscose weaving, coated with a special chemical compound to prevent residue in chamber / breech.

Compatible Howitzer / Canons:
M1, M1A1, M45, M126, M126A1, M185, M199

PERFORMANCE DATA

EVALUATION TYPE TEST STANDARD PERFORMANCE REQUIREMENT
DESING STANDARD MIL-C-43157
MATERIAL IDENTIFICATION TS 4739 %100 VISCOSE
DIAMETER 150 cm (Minimum)
WEIGHT TS 251 200 gr/m²
END&PICKS EN 1049-2 WEFT 30 pcs /cm (Minimum)
WARP 18 pcs /cm ( Min. )
DIMENTIONAL STABILITY TO WASHING ISO 6330 (4N) WEFT ± 3
WARP ± 3
TEAR STRENGTH EN ISO 13937-4 WEFT 20 Nw
WARP 20 Nw
TENSILE STRENGTH EN ISO 13934-1 WEFT 443 Nw
WARP 676 Nw
pH ISO 3071 4.0-7.5
WATER REPELLENT STRENGHT EN ISO 4920 4
SHELF LIFE 5 Years (Uncontrolled Storage)
10 Years (Controlled Storage)
